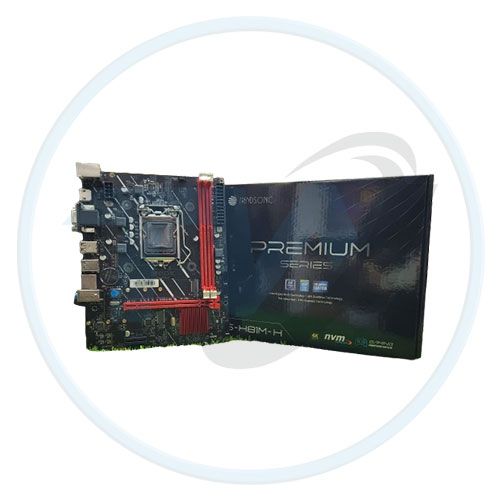

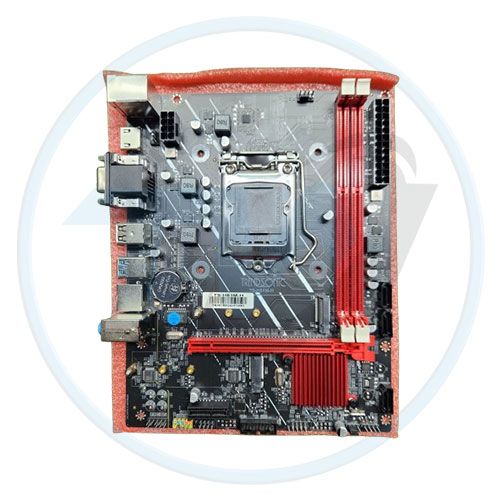

Trendsonic TS-H81M-H DDR-3 Intel 4th/5th Gen M-ATX Motherboard in Bangladesh
Warning: পন্য অবশ্যই ক্রয় করার আগে আমাদের হোয়াটসএপ নম্বরে মেসেজ করে স্টক ও আপডেট প্রাইস/ডিসকাউন্ট সম্পর্কে জেনে নিন - 8801896225229
| Processors Support Type | Intel 4th/5th Dual Core/ Core i3/ Core i5/ Core i7/ |
| Chipset | Intel 81 Series Chipset |
| CPU Socket | Support Intel LGA1150 Platform Processors |
| Memory Slot | 2 x DDR3 Memory Slot |
| Memory Standard | Support Dual Channels DDR3 1333/1600 MHz(Decided By CPU)，Max Support32GB |
| Storage Interface | 4xSATA 3.0 6Gbps |
| Expansion Slots | 1xPCI Express3.0 x16,1xPCI Express 2.0 x1,2xPCI |
| Expansion Interface | 1xM.2 2280 NVME PCIE X4 2.0 |
| Sound Track | Realtek High Fidelity Audio |
| Network Card | Gigabit Network Card |
| Power Interface | 24PIN+8PIN |
| FAN PIN | 1xCPU_FAN PIN，2xSYS_FAN PIN |
| Power Supply | 6-Phase Power Supply |
| PCB Layers | 4-Layer PCB |
| Dimension | 240*180MM M-ATX |
| Rear Panel Interface | 2xUSB3.0, 2xUSB2.0, 1xVGA Interface,1xHDMI2.0 Interface,1xCOM Interface,1x Network Card Interface,
1×3-Hole Audio Interface,1xPS/2 Interface,1xJVGA PIN |
| Front Panel Interface | 2 xUSB2.0 PIN,1 xUSB3.0 PIN,1 x Front Audio PIN,,1 x Debug PIN,1 x JBAT BIOS PIN,1 x TPM PIN,
1 x SPEAK PIN,1 x Power On/Restart PIN |
| Support System | Windows7 Windows10 Windows11（Restore AC Power Loss/Scheduled Power On/Wake-on-LAN/IPV4/IPV6 PXE Boot） |
| BIOS | AMI UEFI BIOS |
| Packing List | 1 x Motherboard,1x SATA Cable,1xIO PANEL |
| Socket | Intel LGA1150 |
|---|---|
| Memory Type | DDR3 |
